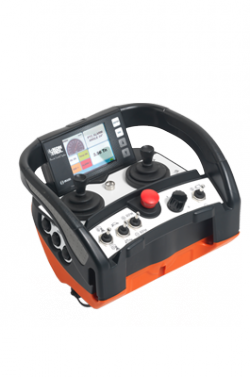

IK3
다양한 분야에 응용 추천하는 송신기
적용가능한 응용분야들
송신기 특성
- Up to 3 joysticks or 6 paddles.
- Multiband Radio with Full-Duplex communication.
- Highly customizable.
- 3.5" color TFT display.
- External removable EEPROM SIM module.
- Easy and fast maintenance.
- High resistance to impacts.
- Innovative ergonomics.
- Non-slip handles.
- Frequency management against interferences.
적용가능한 수신기
상세정보
| 송신기 | IK3 |
|---|---|
| Stop Function | Cat. 3 - PLd |
| Ingress Protection | IP65/NEMA4 |
| Anti condensation system | Goretex Film |
| Frequency Band | Multiband (400 - 930 MHz) |
| Main Mechanisms (Max. #) | Joystick (3)/Paddle (6) |
| Auxiliary Mechanisms | Pushbutton, Toggle & Rotary switches |
| Removable EEPROM | External |
| Battery Model | BT24IK |
| Battery Life | 16h |
| Operating Temperature Range | -20C +70C (-4F +158F) |
| Weight (with Battery) Grams | 1780 |
| Harness | Belt / Shoulder Strap |
| Display | 3.5" Colour TFT |
| Cable Connection | YES (M12 Connector) |
| Range Limiter | YES |
| Associated Receivers | R13/R70/R70PLUS/RCAN/MP20 |
| 품명 | 무선리모컨 송신기 |
| 공급사(상품명) | IK3 |
| 용도 | 크레인무선제어기 |
| 특징 | 2개의 4단/5단 조이스틱, 토글스위치, 푸쉬버튼스위치, 칼라LCD, 견고한 하우징, 방진방수 IP65/NEMA4 등 |
| 무게 | 약 1.7Kg |
| 원산지 | Spain |
| 전파인증번호 | MSIP-CRI-TU2-TMIK3 |
| 물품 속성정보 (Specification) | |
| TYPE | Transmitter |
| Model-1 | IK3 |
| Maker | Danfoss Power Solutions Telecontrol, S.L.U |
| Voltage Ratio | DC 4.8V |
| Capacity | <= 10mW |
| Apprd.Standards Regist No. | MSIP-CRI-TU2-TMIK3 |
| Frequency Range (From) | 447.6000 Mhz |
| Frequency Range (To) | 447.9875 Mhz |
| Operation Type | Joysticks, Toggle switch, pushbuttons |
| Option & Others | with TFT color LCD |
