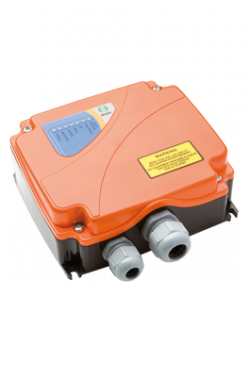

RCAN
통신 응용분야에 최적의 수신기
수신기 특성
- Multiband Radio with Full-Duplex communication.
- External LEDs for troubleshooting.
- Highly field-customizable.
- External EEPROM SIM module.
- frequencies management against interferences.
- STOP: PLd, Category 3 according to EN ISO 13849-1
- Easy and fast maintenance.
- CANopen, Profibus-DP, SAE J1939, IQAN.
적용가능한 송신기
상세정보
| 수신기 | RCAN |
|---|---|
| Stop Function | Cat. 3 - PLd |
| Ingress protection | IP67/NEMA6 |
| Frequency Band | Multiband (400 - 930 MHz) |
| AC Power Supply | na |
| DC Power Supply | 9 -35 Vdc |
| Antenna | External |
| Removable EEPROM | Internal |
| Signalling | External |
| ON/OFF outputs (Max.) | 4 |
| Analogue Outputs (Max.) | na |
| CANOpen, Profibus-DP, SAE J1939 | YES |
| ON/OFF inputs (Max.) | 4 |
| Analogue Inputs (Max.) | 1 |
| Maximum output Current | 6A |
| Working Temperature Range | -20C +70C (-4F +158F) |
| Weight (gr) | 430 |
| Dimensions (LxWxH mm) | 151x129x61 |
| Cable connection | YES |
| Associated Transmitters | T70/1HALL, T70/2HALL, T70/1 ATEX, T70/2ATEX, IK2, IK3, IK4 |
