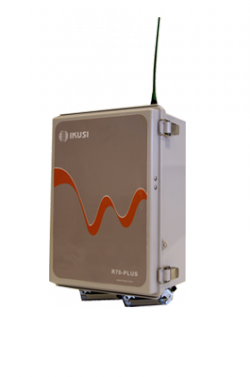

R70 PLUS
무한한 응용분야와 기능을 가진 수신기
수신기 특성
- Multiband Radio with Full-Duplex communication.
- Highly field-customizable.
- External EEPROM SIM module.
- frequencies management against interferences.
- STOP: PLd, Category 3 according to EN ISO 13849-1
- Easy and fast maintenance.
- Multi- feedback capability.
- 53 digital and 8 analogue outputs.
- Suitable for all common proportional valves.
적용가능한 송신기
상세정보
| 수신기 | R70PLUS |
|---|---|
| Stop Function | Cat. 3 - PLd |
| Ingress protection | IP65/NEMA4 |
| Frequency Band | Multiband (400 - 930 MHz) |
| AC Power Supply | 48/115/230 Vac |
| DC Power Supply | 9 -35 Vdc |
| Antenna | External |
| Removable EEPROM | Internal |
| Signalling | Internal |
| ON/OFF outputs (Max.) | 53 |
| Analogue Outputs (Max.) | 10 |
| CANOpen, Profibus-DP, SAE J1939 | na |
| ON/OFF inputs (Max.) | 44 |
| Analogue Inputs (Max.) | 8 |
| Maximum output Current | 8A |
| Working Temperature Range | -20C +70C (-4F +158F) |
| Weight (gr) | Config dependable |
| Dimensions (LxWxH mm) | 350x250x150 |
| Cable connection | YES |
| Associated Transmitters | IK3, IK4 |
